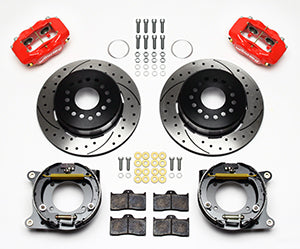

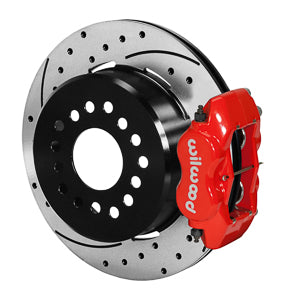

#140-11828-DR Wilwood Forged Dynalite Rear Parking Brake Kits

Name: #140-11828-DR Wilwood Forged Dynalite Rear Parking Brake Kits
Brand: ABS Power Brake
SKU: #140-11828-DR
Price: 1148.49 USD
Availability: InStock

Brand:

Wilwood Disc Brakes

Manufacturer's Part Number:

140-11828-DR

Part Type:

Disc Brake Kits

Product Line:

Wilwood Forged Dynalite Rear Parking Brake Kits

Summit Racing Part Number:

WIL-140-11828-DR

UPC:

889545014204

Position:

Rear

Front Rotor Included:

Brake Rotor Bolt Pattern (in.):

Dual 5 x 4.75 in./5 x 5.00 in.

Brake Rotor Bolt Pattern (mm):

Dual 5 x 120.65mm/5 x 127.00mm

Differential Case Design Type:

GM 8.2 in.

Axle Housing Flange Style:

Chevrolet 55-64/Corvette 56-62 (3.396 in. x 2.65 in.)

Rear Rotor Included:

Yes

Rear Rotor Style:

Cross-drilled/Slotted surface

Rear Rotor Construction:

Vented

Rear Rotor Diameter:

12.19 in./309.63mm

Rear Rotor Thickness (in.):

0.81

Front Caliper Included:

Rear Caliper Included:

Yes

Rear Caliper Piston Quantity:

Four

Rear Caliper Material:

Forged billet aluminum

Rear Caliper Color:

Red

Brake Pads Included:

Yes

Friction Material Name:

BP-10

Parking Brake Provision:

Yes

Parking Brake Style:

Internal drum

Minimum Recommended Wheel Diameter (in.):

15 in.

Offset (in.):

2.460 in.

Front Spindles Included:

Master Cylinder Included:

Brake Booster Included:

Remanufactured:

Brake Hoses Included:

Quantity:

Sold as a kit.

Notes:

Kit will fit some 15.00 in. wheels, minimum 7.17 in. distance required from centerline of axle to top of caliper.

$1,148.49 USD

Sale Sold out

Shipping calculated at checkout.

Warranty

All our units are guaranteed for 1 year from date of purchase, to be free of defects in materials and workmanship. This guarantee is void in the event of misuse, neglect, improper installation or misdiagnosis. Absolutely, no electrical parts are refundable. We reserve the right to exchange any electrical item after it is returned to us and inspected by us. Any suspected defective item must be authorized prior to return and shipping must be paid by the customer. Guarantee covers replacements of defective part only and does not cover installation, labor costs, or incidental damages.

Returns / Exchanges

Within 30 days of purchase.

Not damaged nor used.

15% Re-Stocking Fee

Built to Order

2-3 Weeks For Processing Before Order Is Shipped
