#140-10908-DR Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Name: #140-10908-DR Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
Brand: ABS Power Brake
Price: 1947.0 USD
Availability: InStock

Brand:

Wilwood Disc Brakes

Manufacturer's Part Number:

140-10908-DR

Part Type:

Disc Brake Kits

Product Line:

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Summit Racing Part Number:

WIL-140-10908-DR

UPC:

889545010749

Position:

Rear

Front Rotor Included:

Brake Rotor Bolt Pattern (in.):

Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.

Brake Rotor Bolt Pattern (mm):

Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

Differential Case Design Type:

GM 8.875 in. (12-bolt), passenger car

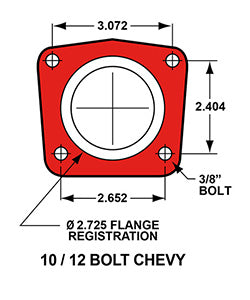

Axle Housing Flange Style:

10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)

Rear Rotor Included:

Yes

Rear Rotor Style:

Cross-drilled/Slotted surface

Rear Rotor Construction:

Vented

Rear Rotor Diameter:

12.88 in./327.15mm

Rear Rotor Thickness (in.):

1.10

Front Caliper Included:

Rear Caliper Included:

Yes

Rear Caliper Piston Quantity:

Four

Rear Caliper Material:

Forged billet aluminum

Rear Caliper Color:

Red

Brake Pads Included:

Yes

Friction Material Name:

BP-10

Parking Brake Provision:

Yes

Parking Brake Style:

Internal drum

Minimum Recommended Wheel Diameter (in.):

17 in.

Offset (in.):

2.810 in.

Front Spindles Included:

Master Cylinder Included:

Brake Booster Included:

Remanufactured:

Brake Hoses Included:

Quantity:

Sold as a kit.

Notes:

Designed to fit with factory C-clip axles, and staggered shock mounts. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
