#140-10012-DR Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Name: #140-10012-DR Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
Brand: ABS Power Brake
SKU: #140-10012-DR
Price: 2372.7 USD
Availability: InStock

Brand:

Wilwood Disc Brakes

Manufacturer's Part Number:

140-10012-DR

Part Type:

Disc Brake Kits

Product Line:

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Summit Racing Part Number:

WIL-140-10012-DR

UPC:

889545008333

Position:

Rear

Front Rotor Included:

Brake Rotor Bolt Pattern (in.):

Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.

Brake Rotor Bolt Pattern (mm):

Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

Axle Housing Flange Style:

Big Ford New Style/Torino (3.562 in. x 2.00 in.)

Rear Rotor Included:

Yes

Rear Rotor Style:

Cross-drilled/Slotted surface

Rear Rotor Construction:

Vented

Rear Rotor Diameter:

14.00 in./355.60mm

Rear Rotor Thickness (in.):

1.10

Front Caliper Included:

Rear Caliper Included:

Yes

Rear Caliper Piston Quantity:

Four

Rear Caliper Material:

Forged billet aluminum

Rear Caliper Color:

Red

Brake Pads Included:

Yes

Friction Material Name:

BP-10

Parking Brake Provision:

Yes

Parking Brake Style:

Internal drum

Minimum Recommended Wheel Diameter (in.):

18 in.

Offset (in.):

2.500 in.

Front Spindles Included:

Master Cylinder Included:

Brake Booster Included:

Remanufactured:

Brake Hoses Included:

Quantity:

Sold as a kit.

Special Attention:

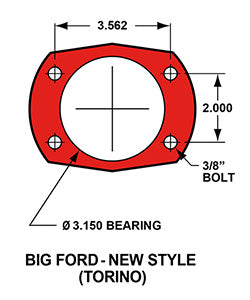

New Style Big Ford housing end (3.562 in. x 2.00 in.). Measures 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center. 3.150 in. center bore.
